![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhqoPN7BNfgXo1R3O5ZAdjQejXnwG0fJh6nTjKBR_fdcSP98ZILQfrj9d0yAaPjj09Shp6Xn1y8noCV9EstFKYCD394sOBhl0eLgrqPppQkOkEGcDb8_hJrUmXIitSvZnxmzMPPLKiHHpCK/s400/IMG_1556.jpg)
Each leg of the tower is grounded to an 8' ground rod. The rods are tied to each other.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjUo5D9Dnv_ALWlQN709QDCkmX8VmXuqN0_PgIxqymFZz5trn1u9sq_oih_b0neB00U2a9my4yX2eZpZl7KAuUczcC5XSqMKY8H7mTua5KV_rrQFMdGe-PVyadDx-1pzVzj2gjBTq_wvdSJ/s400/IMG_1560.jpg)

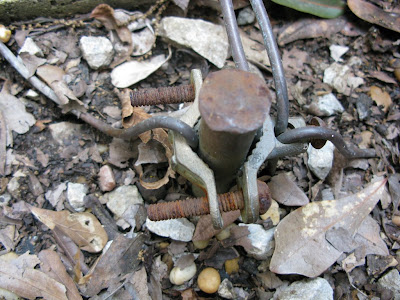

One of the three 8' ground rods.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjSsmrNg3SeswDRoWEyjABsA2wuORzPfFbUpYjCHXNwKqmGLei3NLWZE89bdx01ov3uZQF7yphi74raxwkrxqW66z_WziKfhkaDZJeu9Ug58OQqjIEgd1N54bs1Wx70T9jvqY6EVO4hqWID/s400/IMG_1562.jpg)
Looking up from the base of the tower to the entry panel. Note the feed lines come off the tower at roof line and go directly to the entry panel.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi79z6VlH0u5K1mR_hLI9TnnrOPLoh7CcXtzsbZ2JdK9RTlHDiLI-qX7Jz9QwX3Z6jS_c351w6aVlb-0QEHeLCGkslxX56YOUmF1R2jB37SL1_-oG7CGmtsVzqPUlJrBNJZs0Ixx95QI8Cy/s400/IMG_1563.jpg)

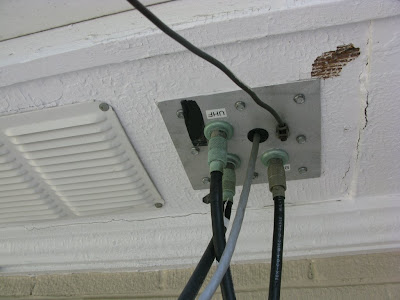

The entry panel. Note the ground wire. This runs down a leg of the tower and is tied to one of the ground rods.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjRU-n6hFnAoKuL9AW67CjGXqvJv-BQq6M-SjZqvZEOH45bHHlIXrSamGQOR_UfrVTMX0jacmjnNCE6pEM4d-nqtBEdH4HNtvOcBDIP99TfasAbgtV7L00vkVcIkdO0u7U07zXL6ASiDjQW/s400/IMG_1564.jpg)

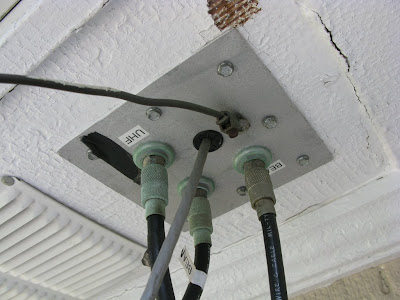

Feed lines from the UHF, Beam, and Fan dipole. The fan dipole goes to the connector labeled beam--go figure!
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjtts23UOhX1SuRY2LVy7T9on5BcjHXpQamKIpQEQy_hq0Wf5iH8lCMwD_itsqAPSxVs4WlMoAH2h0BKHS-xmUeX6GzSCYPQGuxn3h7PRS3CKSPisxM95ekP0DYsj76fb0B0lDklZVnotjP/s400/IMG_1554.jpg)

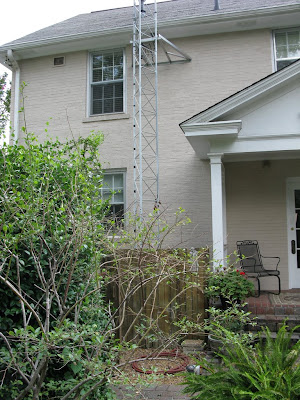

Note the tower sits just to the right of the guest bedroom. Can you guess what I'm think?
